CONSTRUCTION DEWATERING PUMPSETS (CRDS & CDS)

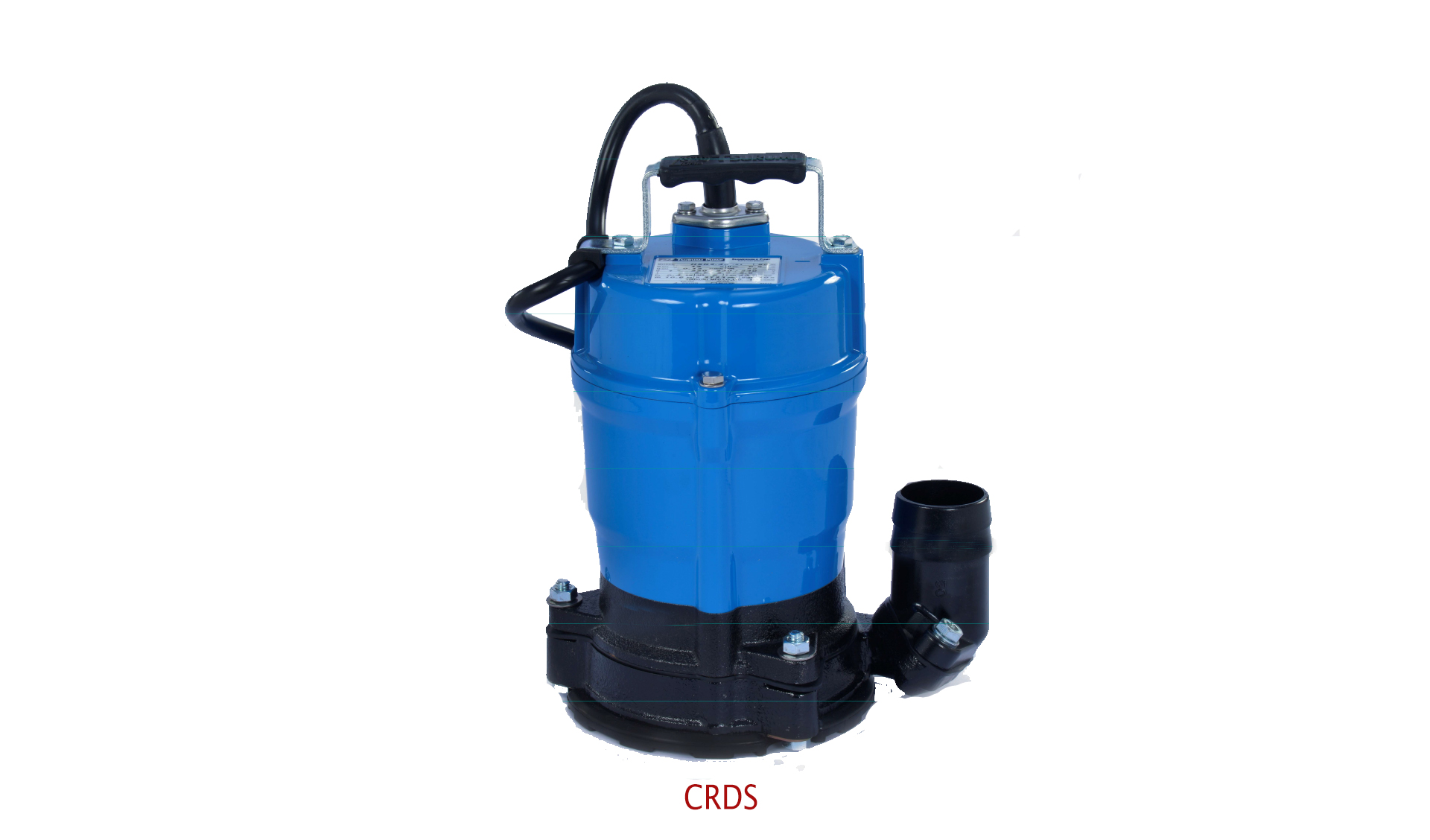

“AQUATEX” CRDS pumps have the unique characteristic of draining water down to the very bottom. Ideal for cleaning underground sumps, over head tanks, and draining curing water from concrete floors at construction sites with minimal effort.

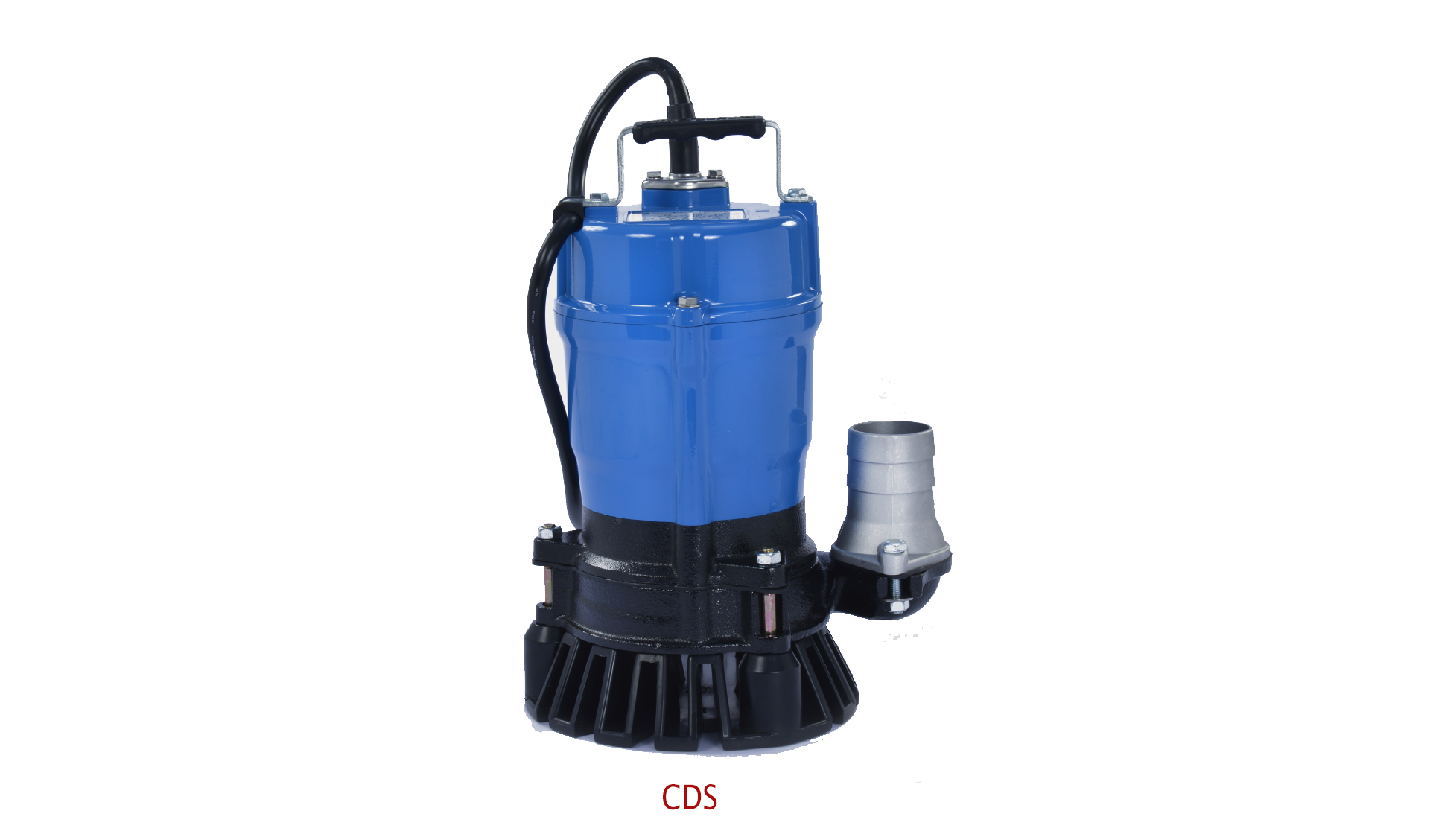

“AQUATEX” CDS high performance construction dewatering pumps can take on the toughest construction sites by virtue of their rugged cast iron construction and superior design. Perfect pumps for highly abrasive sand and silt laden water at construction sites.

Product / Operating Range

PARTICULARS DETAILS
PRODUCT CRDS CDS
Power Range 0.5 HP 0.5HP and 1.0HP
Voltage Range 200V – 240V, 50Hz, AC Single phase
Speed 2900 rpm
Head Up to 10 M 2 to 16 M
Discharge 50 LPM to 110 LPM 75 LPM to 300 LPM
Delivery Size 50MM 50MM and 80mm

Application

CRDS

  • Ideal pump for complaint draining of flat surface
  • Cleaning & draining of underground sumps, swimming pools & fish ponds
  • Draining of basement parking, roofs tops parking lots, services / utility pits, plant maintenance /clean up

    • CDS

  • Dewatering sand and silt laden water in foundation and civil construction sites
  • Draining strom water from basements of buildings

    • Features

    CRDS

  • Highly reliable floor level residue drainage pump
  • Wear parts made of abrasion resistance materials ensuring durability
  • Start pumping at a water level of minimum 5mm
  • Capable of pumping water down to 1mm level
  • Light weight and compact
  • Low maintenance cost
  • Discharge direction can be altered to prevent folding or bending of discharge hose

    • CDS

  • Wear parts made of abrasion resistance materials ensuring durability
  • Capable of pumping sand and silt laden water with minimal wear and clogging
  • Ease of maintenance. The pump can be dismantled and assembled using a single 13mm box wrench.
  • Built in shaft mounted agitator prevents the ‘air lock’ that tends to make place on vortex impeller.
