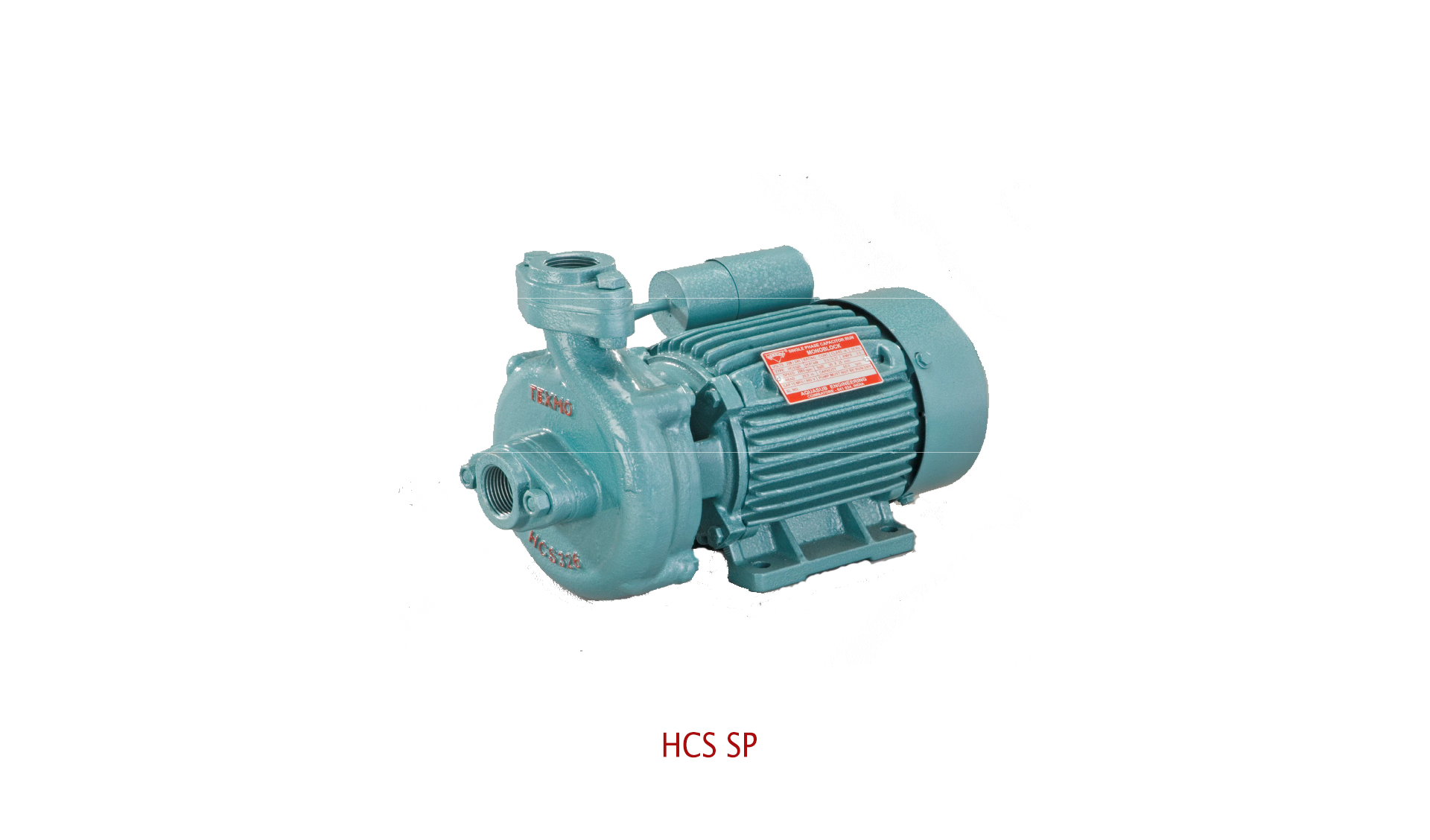

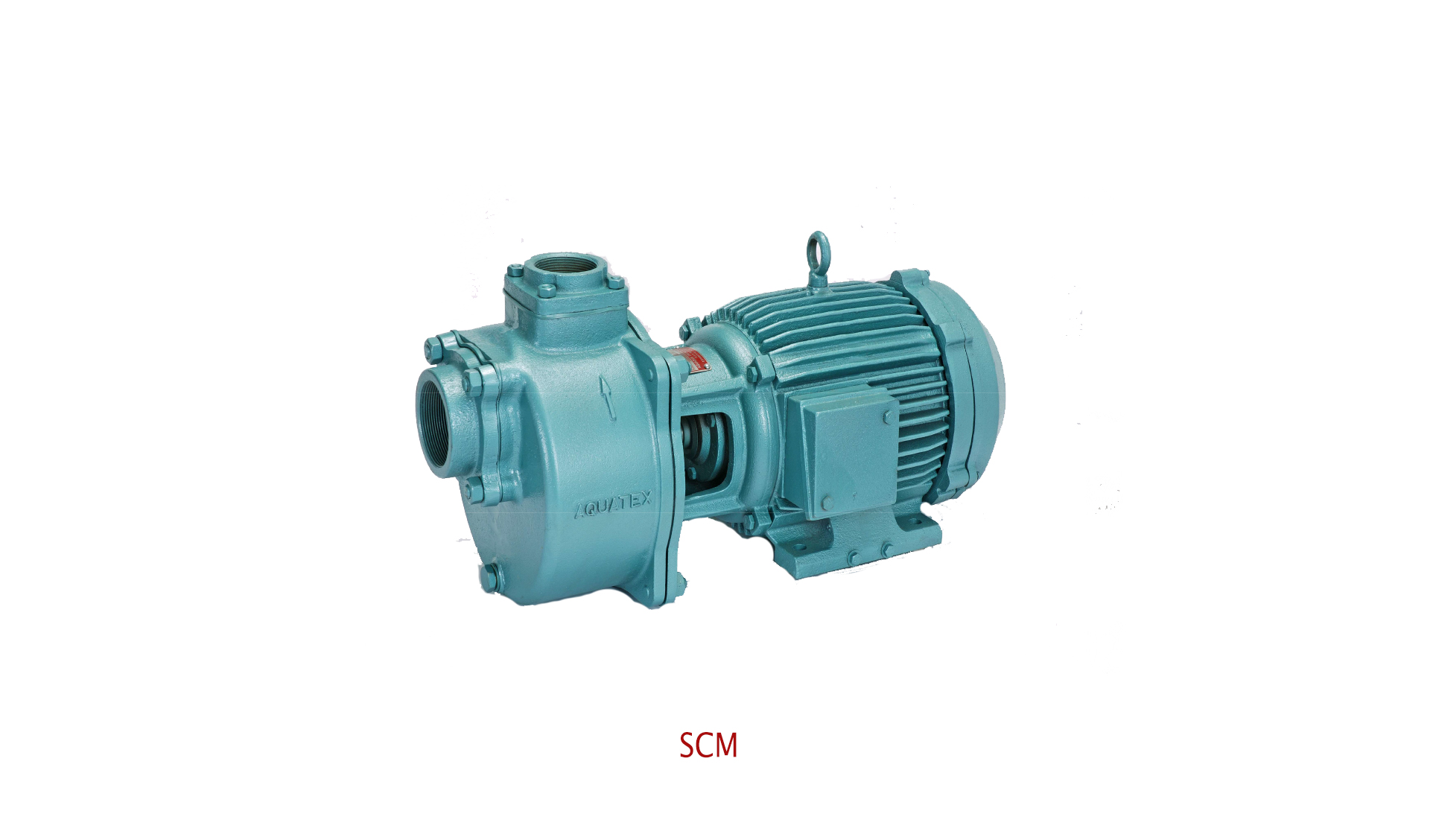

SINGLE PHASE SELF PRIMING MONOBLOCK PUMPS (SCM / HCS SP)

AQUAGROUP’S “TEXMO” Single phase Self priming Centrifugal Pumpsets are Rugged and Reliable where the water requirement is fairly high. High efficiency with lower power consumption than the other types of small self priming pumps.

Product / Operating Range

PARTICULARS DETAILS
PRODUCT SCM HCS SP
Power Range 1.0 to 1.5 HP 0.5HP to 1.0HP
Voltage Range 200V – 240V, 50Hz, AC Single phase
Speed 2900 rpm
Motor Type Capacitor run motor TEFC type
Head Maximum 18 M Maximum 21 M
Discharge Maximum 410 LPM Maximum 160 LPM
Operating Pressure Maximum 10 bar Maximum 10 bar

Application

  • All applications requiring Self priming action
  • Hospitals, Marriage Halls.
  • Overhead storage water- tank filling
  • Water supply to commercial establishments like Hotels, Lodges and Hospitals
  • Irrigation for small farms and gardens.

    • Features

  • Rugged single phase TEFC construction
  • Suitable for 200V – 240V, 50 Hz ,AC power supply
  • In-built thermal over load protector
  • In-built non return valve
  • Rigid cast iron casing and diffuser
  • Sturdy bronze impeller.
  • Carbon Vs Ceramic mechanical seal
